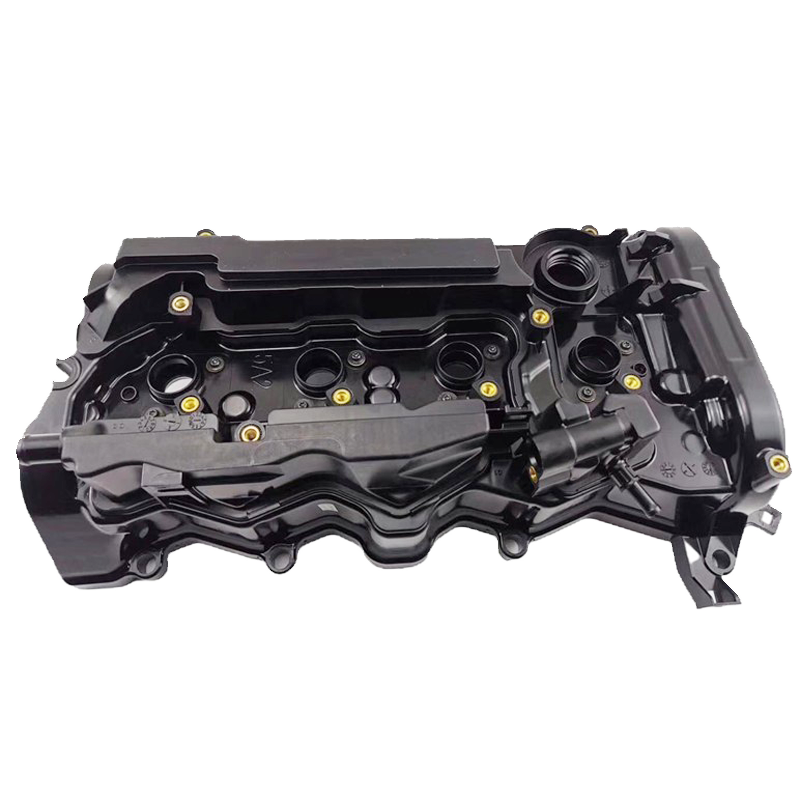

When it comes to making engine valve covers these days, die casting stands out as the go-to method. It can produce those intricate shapes with pretty impressive precision around 0.25 mm tolerance. The process involves pouring molten AlSi10Mg aluminum into steel molds under some serious pressure over 1,500 psi actually, which translates to about 800 to 1,200 bar. This high pressure helps maintain walls between 2.5 and 4 mm thick throughout the part, something critical for preventing leaks that would otherwise hurt engine performance. Looking at industry trends from the latest Automotive Manufacturing Report released in 2023, most manufacturers seem convinced too. Around three out of four original equipment manufacturers have switched to die cast valve covers because they cut down on weight, and this weight saving makes vehicles burn less fuel overall, potentially improving efficiency by as much as 3% in real world conditions.
This streamlined sequence enables high repeatability and supports mass production demands.
Advanced mold simulation software cuts prototyping costs by 40% through virtual analysis of cooling channels and gate placement. Factories achieving sub-60-second cycle times use conformal cooling systems—custom-shaped channels that reduce die temperatures by 15% compared to conventional straight-drilled designs—enhancing part consistency and extending tool life.
| Defect Type | Cause | Mitigation Strategy |
|---|---|---|
| Porosity | Gas entrapment during filling | Vacuum-assisted casting systems |
| Warpage | Non-uniform cooling rates | Multi-zone thermal management |
Manufacturers compliant with IATF 16949 standards integrate real-time X-ray inspection to detect subsurface voids larger than 0.3 mm, ensuring structural reliability without destructive testing.
These benefits make die casting ideal for precision-critical, high-volume automotive components.
The AlSi10Mg alloy has become the go to choice for making engine valve covers because it strikes just the right balance between being strong enough but still light weight. The material offers a tensile strength around 240 MPa and conducts heat pretty well too, somewhere between 130 and 150 W per meter Kelvin. According to some recent research from 2023 looking at different car parts materials, components made from this alloy end up weighing about 60 percent less than when they're cast from iron, yet they hold up just fine even when engines run hot, sometimes reaching temperatures close to 200 degrees Celsius. What makes AlSi10Mg work so well is that it contains roughly 9 to 11 percent silicon which helps the metal flow better when poured into molds during die casting processes. This property allows manufacturers to create complex shapes with built in details such as special gasket rails and those little channels needed for proper air circulation.
After undergoing heat treatment, AlSi10Mg reaches a hardness range between 90 and 120 HV. What's really impressive is how it holds onto about 85% of its strength even when temperatures climb to 150°C, which beats out options like A356. The material also has a pretty low thermal expansion coefficient at around 21.5 micrometers per meter per degree Celsius, so it doesn't warp much when going through temperature changes. Looking at corrosion resistance, tests indicate there's roughly 40% less pitting damage in salt spray environments compared to regular Al-Si alloys. This makes a big difference for parts that need to last longer in harsh conditions.
| Material | Density (g/cm³) | Thermal Conductivity (W/m·K) | Cost Index | Weight Saving vs. AlSi10Mg |
|---|---|---|---|---|
| Cast Iron | 7.1 | 50 | 0.8x | -60% |
| A356 Aluminum | 2.7 | 96 | 1.2x | 0% |
| Magnesium AZ91 | 1.8 | 54 | 1.5x | +33% |
While magnesium offers greater weight savings, AlSi10Mg remains favored for its superior dimensional stability (30% lower thermal expansion) and compatibility with standard machining processes, reducing production complexity and cost.
High-purity AlSi10Mg (iron content < 0.15%) extends service life by 18–22%, according to 2024 durability simulations. Impurities—especially iron oxides—can initiate microcracks and reduce fatigue resistance by up to 30%. Leading suppliers employ spectroscopy-based quality control to maintain impurity levels below 0.1%, meeting stringent OEM requirements for 150,000-mile powertrain warranties.
For engine valve cover factories, AlSi10Mg provides the best combination of castability, mechanical performance, and compliance with lightweighting mandates tied to emissions regulations.
Dimensional precision within ±0.1 mm and flatness tolerance of ≤0.05 mm are critical for reliable gasket sealing and proper engine assembly alignment. Deviations exceeding 0.2 mm in flatness can increase oil leakage risk by 37% over 100,000 km (SAE International 2023). To ensure compliance, automated laser scanning systems perform continuous surface profiling across production runs.
Modern factories utilize 3D CMM systems with sub-0.025 mm measurement repeatability, allowing real-time adjustments to casting parameters. Some facilities deploy seven-axis CMMs integrated with AI to rapidly compare physical parts against OEM CAD models in cycles under 15 seconds, accelerating quality feedback loops.
Internal microporosity exceeding 0.5% volume in AlSi10Mg castings can reduce fatigue life by up to 60% (ASTM E505-2023). Therefore, advanced plants use 150 kV X-ray systems combined with machine learning algorithms to detect voids smaller than 0.3 mm with 99.7% accuracy—enabling full traceability and zero-defect targets.
Pneumatic leak tests pressurized to 2.5× operational limits (typically 50–70 kPa) identify sealing defects within 90-second cycles without damaging parts. Paired with ultrasonic wall-thickness monitoring, this method ensures compliance with industry best practices for critical fluid containment systems.
Automated SPC systems reduce dimensional variation by 85% compared to manual sampling (ASQ 2024). However, skilled technicians still conduct periodic audits using calibrated surface plates and dial indicators to validate CMM data. This hybrid model sustains 6σ quality levels even across half-million-unit production batches.
To meet large-scale OEM demand, select factories equipped with:
Top-tier suppliers serving Tier 1 automakers maintain 30% excess capacity to handle urgent orders while keeping lead times under 10 days.
Robust automation and lean principles drive scalability and efficiency:
| Automation Feature | Impact on Production |
|---|---|
| Robotic trimming/deburring | Reduces post-processing time by 40% |
| AI-driven predictive maintenance | Cuts unplanned downtime by 22% (PwC 2023) |
| Automated quality gates | Ensures 99.4% first-pass yield in large batches |
Lean techniques such as single-minute exchange of die (SMED) enable 85% faster mold changes, making high-mix, high-volume operations feasible.
A 2023 analysis of a leading Asian automotive parts manufacturer demonstrated how scaling to 9,000 monthly valve covers was achieved through:
This integrated approach maintained ±0.1 mm tolerances and delivered 98% on-time performance over 18-month contracts.
When looking for a trustworthy engine valve cover manufacturer, it's important to check if they follow those strict automotive OEM specs, especially regarding how flat the covers need to be (around 0.1 mm variance) and their ability to handle heat properly. Factories with IATF 16949 and ISO 9001 certifications tend to produce parts with about 23% fewer flaws according to recent audits in 2023. These certifications also mean they can track materials all the way from the raw AlSi10Mg metal batches right down to each finished component. Good manufacturers will use something called statistical process control (SPC) to keep everything dimensionally accurate. They'll also run non-destructive tests that catch leaks almost every single time, with success rates hovering around 99.97%. Look at how fast engineers can collaborate on prototypes too. The best suppliers manage to cut down tooling development time by roughly 18 to 22 days when everyone works together simultaneously on designs. Finally, third party checks are essential to verify these factories can actually scale production beyond half a million units per year while keeping defects under 0.5%. This kind of validation shows real dedication to quality manufacturing practices that meet what the automotive industry expects.
Die casting allows for high precision and intricate designs with a tolerance of about 0.25 mm. It also helps reduce the weight of the vehicle, potentially improving fuel efficiency by up to 3%.
AlSi10Mg provides an excellent balance of strength and lightweight properties, making it ideal for engine valve covers. It also offers good thermal conduction and helps reduce the weight of the covers by about 60% compared to iron.
Advanced mold simulation software cuts prototyping costs and enhances part consistency. Factories utilizing conformal cooling systems achieve better cooling, resulting in enhanced tool life and reduced die temperatures.
Common defects include porosity due to gas entrapment and warpage resulting from non-uniform cooling rates. Solutions include using vacuum-assisted casting systems and multi-zone thermal management.
Modern manufacturing uses advanced inspection methods such as automated laser scanning, X-ray inspection for internal flaws, and statistical process control to ensure dimensional accuracy and integrity.
